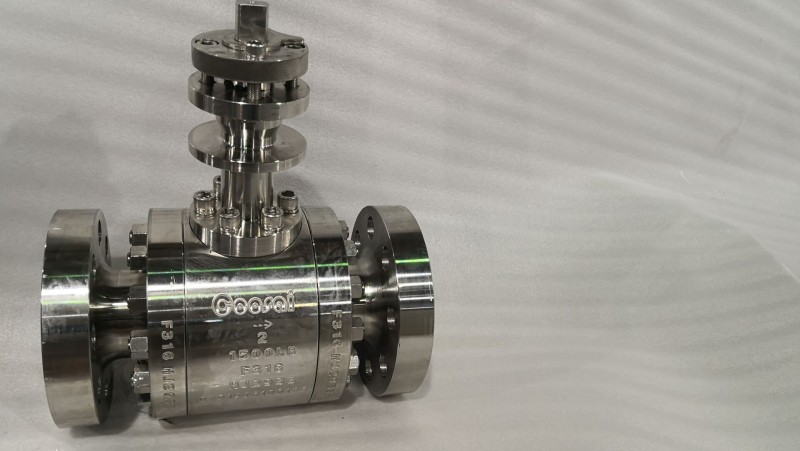

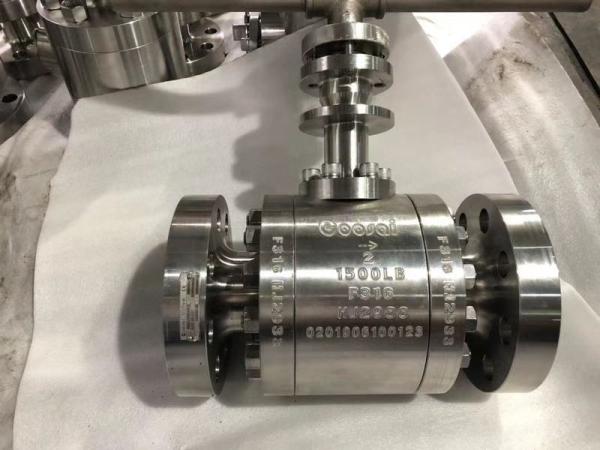

Floating Type Ball Valve

Design Feature

1: Full bore or reduced bore
2: Two-Piece downstream sealing
3: Fire safe design(API 607)
4: Blowout-proof system
5: Anti-static design
6: Fugitive emission testing(optional)

Design Data

Design standard: API 6D,DIN3357-1 , EN12516-1

Face to Face standard: API6D, ASME B16.10, DIN3202

Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25

Test & Inspect Standard: API 6D ,API 598

Working Temperature: -196℃~150℃

Connection type: RF,RTJ,FF,BW.BSPT,NPT

Sour environment:NACE MR0175

Main Material

*The ball is seat supported for size 8” and smaller.

Reliable seat seal

The structure design of elastic sealing ring has been adopted for floating ball valve. This seat design features a bigger sealing pressure ratio between the ring surface and the ball when medium pressure gets lower, where the contacting area is smaller. Thus, the reliable sealing is encusred. When the medium pressure gets higher, the contacting area between seat ring and ball becomes bigger as the ball sealing ring transforms elastically to undertake the bigger force pushed by the medium without any damage.

Fire safe design

With the valve heated in a fire application, the Non-metal material parts such as seat sealing ring of PTFE, stem back seat gasket, gland packing, and the sealing gasket between body and bonnet might disintegrate or be damaged due to high temperature. Coosai Valve's specially designed structure of auxiliary metal to metal seal is provided to effectively prevent both internal ball and external ball leakage of the valve. As per required by customers, Coosai Valve's floating ball valves with fire safe design can meet the requirement of API607, API6FA, BS6755.

Company Introduction

Coosai a specialized valve manufacturer which has 30 years’ experience in the design and manufacturing of quality engineered valves.

Coosai has a sound organization structure, professional technical capacity, advanced manufacturing and testing equipment, rigorous quality control system and well trained service staff. There is a real technical proficiency at Coosai with an organization to produce and supply valves according to any specific requirements the customer may ask.

Coosai workshops cover an area of 12000 square meters. Total registered asset is RMB 80 million. Besides ISO9001:2008 quality management and QC system, Coosai has the capability in offering varied products by virtue of over 100 sets large scale CNC lathes, testing equipment and computerized control valve testing and calibration bench. Nondestructive testing equipment include PT,UT,MT and RT are available.

Coosai produces quality Ball Valve, Gate valve, Globe valve and Check Valve, Knife gate valve and Segment Ball Valve, Control valves and Butterfly Valves. Valve size from 1/2”—60”,pressure from 150LB-2500LB,temperature range from -196ºC to 610 ºC, connected with manual, pneumatic, electric, hydraulic operator etc.

Coosai valves are CE PED 97/23/EEC, API 6D-0749, API6A-1199,API607 (fire safe) and TS certified. Coosai is Tier One supplier for SINOPEC and CNPC.

Coosai is dedicated to offering the best configuration and satisfy client’s expectations and their eventual commitments.

We look forward to meeting all distinguished clients and industry experts and sincerely welcome all your valuable inquiries.
