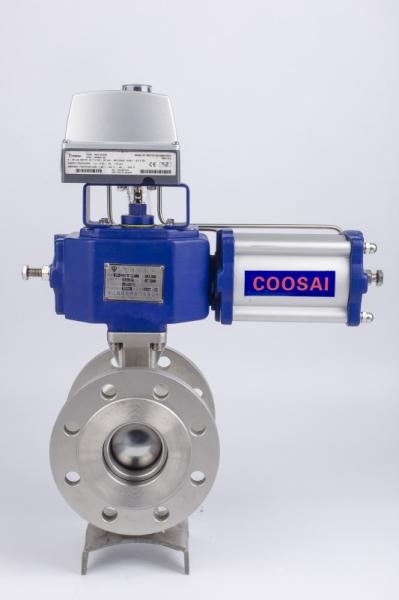

    Abrasion Resistant V Notch Ball Valve For Automatic Process Industry

    Jacked Pneumatic Segment Ball Valve , V-port ball valve,V-Notch ball valve , pneumatic actuator V-ball valve


    Coosai Jacked pneumatic segment Ball valve combines the advantage of globe control valve with the eccficiency of a rotary ball valve which satsfify the needs for throttle and shut off of flow within automatic process industry.The segment ball in V-notch design has strong cutting force and self-cleaning function.With the segment ball quarter turning the passage area changesin ectorial shape.Leading to the precise control of the flowm,it is the ideal valve for most paper and pulp process application,Low CV value precise control is available by special V-notch on DN25 Segment ball.


    Design Feature

    Body

    · Integral body design ensures smooth flow, easy assembly and smaller shell leakage possibility.

    · Both wafer and flange connection are available.

    Ball

    · Specially designed V-notch ball provides strong cutting stress and tight sealing.

    · Hard chromium, nitriding, and HCOF treatments are all available for the ball surface treatment, improving hardness, abrasion resistance, fatigue resistance, corrosion resistance and performance under high temperature.

    · Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated segment valve.

    Seat

    · Metal, RTFE or Devlon are available for seat options.

    · For valve rated under class 150, retainer is casted on valve body to eliminate any possible space between seat ring and body for residue accumulation. Consequently, this ensures perfect seal.

    Stem

    · The stem is finely ground to match the actuator excellently, which prevents rocking motion and potential failure of the segmented valve.

    · Close-fit spline or pin-key are available for stem-core connection to provide reliable transmission without motion lost or dead band.


    Technical Data

    Sizes:

    DN 25~250mm NPS 1”-10” (wafer type)

    DN 25~500mm NPS 1”-20” (flange type)

    Seat Material:

    Resiliant: PTFE/RPTFE/PEEK/DEVLON/NYLON

    Metal: Tungsten Carbide/Satellite/Ni60

    Pressure Rating:

    PN 10/16

    ANSI 150/300

    Actuator :

    Single acting/double acting pneumatic actuator/Electric actuator

    Standard:

    Face to Face Standard (Flange connection):ISA S75.04, IEC/DIN 534-3-2

    Face to Face Standard (Wafer connection): MFR STD

    Connection standard: ASME B16.5 / EN 1092-1

    Test & Inspect Standard:DIN3230,ISO5208,ANSI /FCI 70-2,

    Pressure & temperature rating Standard: ASME B16.34

    Application:

    Pulp & Paper/ Petrochemical /

    Printing & Dying /Pharmacy/ Beverage & Food


    The part list of Segment ball vavle

    Abrasion Resistant V Notch Ball Valve For Automatic Process Industry


    No.Part NameQtyMaterial
    1Body1WCBCF8CF8M
    2Ball1CF8+CrCF8+CrCF8M+Cr
    3Pin2SS304SS304SS316
    4Seat1SS304+STLSS304+STLSS316+STL
    5Spring1SS316SS316SS316
    6O-ring1FluororubberFluororubberFluororubber
    7self lubricating bearing1SS304+PTFESS304+PTFESS316+PTFE
    8Down stem120Cr13SS304SS316
    9O ring1FluororubberFluororubberFluororubber
    10Cover1WCBCF8CF8M
    11Gasket1PTFEPTFEPTFE
    12Adjust gasket1PTFEPTFEPTFE
    13Flat Gasket4Q235SS304SS316
    14Bolt425SS304SS316
    15Stud225SS304SS316
    16self lubricating bearing1SS304+PTFESS304+PTFESS316+PTFE
    17Pin120Cr13SS304SS316
    18Packing1PTFEPTFEPTFE
    19Sealing packing1 setPTFEPTFEPTFE
    20Packing1PTFEPTFEPTFE
    21Gland1WCBCF8CF8M
    22Nut235SS304SS316
    23Up stem120Cr13SS304SS316

    The Flow Characteristic of Segment Ball valve

    Abrasion Resistant V Notch Ball Valve For Automatic Process Industry

    The Torque of Segment Ball valve



    Size

    Normal Pressure PN16, The Torque under Max.pressure 1.0Mpa(Metal seat)Normal Pressure PN16, The Torque under Max.pressure 1.0Mpa(soft seat)Normal Pressure PN25, The Torque under Max.pressure 2.0Mpa(soft &metal seat)Normal Pressure PN40, The Torque under Max.pressure 3.0Mpa(soft &metal seat)Normal Pressure PN63, The Torque under Max.pressure 5.0Mpa(soft &metal seat)
    DN2520203070150
    DN3225253690230
    DN40303040140270
    DN50353542150520
    DN65505062300640
    DN80608095300640
    DN10080120140420900
    DN1251101802206001600
    DN1501703003609501600
    DN20024050059015002700
    DN250430900110023004700
    DN3006001400150035007000
    DN35012002000250062009300
    DN400180032004000720013000
    DN4503000450056001100017300
    DN5004600650082001250022000
