Cryogenic Ball Valve -198 Deg C,Cryogenic Reduced Bore Ball Valve

Cryogenic Definition:

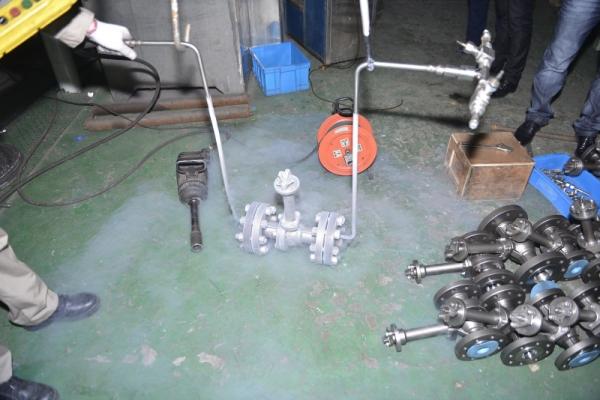

Cryogenic method: soak the parts to be processed into liquid nitrogen tank for cooling, when parts of 196 degrees centigrade temperature reaches-, start insulation 1 ~ 2 hours, then remove the carton natural treatment to room temperature, repeat cycle twice.

Austenitic stainless steel in Martensitic transition temperature, part of austenite into martensite changes causing the resulting volume parts deformation is an important reason for the valve sealing surface leakage. Moreover, as the temperature decreases parts produces shrink and thermal stress caused by the valve irregular parts of deformation caused by low leakage is also one of the reasons. To this end, before finishing of parts (e.g. sealing surface grinding) on main parts such as: the valve body, valve covers, plate (disc), the valve stem fasteners such as below the operating temperature of cryogenic treatment.

Technical Summary

Temperature Range: -196 Deg C

Material: Austenitic Stainless steel, ASTM A351, ASTM A182, Etc.

End Connections: RF, RTJ. FF, Butt Welded, Extended Butt Welded, Etc.

Standards: API 6D, API 607 for fire safe design,Etc.

Operation: Lever / Handwheel, or gear operated, Pneumatic or Electric Actuated. Etc.


Szie Range: 1/2"~8"(DN15~DN200)

Series in Range: Standard bore, reduced bore; Ball valve,Etc.

Application: Air separation plants, LNG storage and distribution, LNG Transportation, Liquid and Gaseous Oxygen for steel production, Etc.

Pressure Range: 150LB ~ 2500LB, PN10~PN64

Company Introduction

Coosai a specialized valve manufacturer which has 30 years’ experience in the design and manufacturing of quality engineered valves.

Coosai has a sound organization structure, professional technical capacity, advanced manufacturing and testing equipment, rigorous quality control system and well trained service staff. There is a real technical proficiency at Coosai with an organization to produce and supply valves according to any specific requirements the customer may ask.

Coosai workshops cover an area of 12000 square meters. Total registered asset is RMB 80 million. Besides ISO9001:2008 quality management and QC system, Coosai has the capability in offering varied products by virtue of over 100 sets large scale CNC lathes, testing equipment and computerized control valve testing and calibration bench. Nondestructive testing equipment include PT,UT,MT and RT are available.

Coosai produces quality Ball Valve, Gate valve, Globe valve and Check Valve, Knife gate valve and Segment Ball Valve, Control valves and Butterfly Valves. Valve size from 1/2”—60”,pressure from 150LB-2500LB,temperature range from -196ºC to 610 ºC, connected with manual, pneumatic, electric, hydraulic operator etc.

Coosai valves are CE PED 97/23/EEC, API 6D-0749, API6A-1199,API607 (fire safe) and TS certified. Coosai is Tier One supplier for SINOPEC and CNPC.

Coosai is dedicated to offering the best configuration and satisfy client’s expectations and their eventual commitments.

We look forward to meeting all distinguished clients and industry experts and sincerely welcome all your valuable inquiries.
